FEATURES
GF-Baby Jib
Technical Specifications
The GF-Baby Jib is a stable, very compact Jib with an arm length of only 45 cm (1'5") (pivot point to Euro Adapter). It is ideal for working off dollies in tight confined spaces as it provides additional pan and tilt adjustment plus smooth, vibration-free movements.
REACH
45 cm (1'5")
JIB WEIGHT
16 kg (35 lbs)
CAMERA HEAD
Mitchell 3-Way with integrated Double Swivel
REAR (RETRACTED)
REAR (EXTENDED)
LIFT RANGE
31 cm (1')
63 cm (2')
51 cm (1'8")
TILT ANGLE
53 degrees
MAX PAYLOAD
30 kg (66 lbs)
MAX COUNTERWEIGHT
48 kg – 4 × 12 kg
(105 lbs – 4 × 26 lbs)
JIB MOUNT
Euro Adapter (Mitchell available)

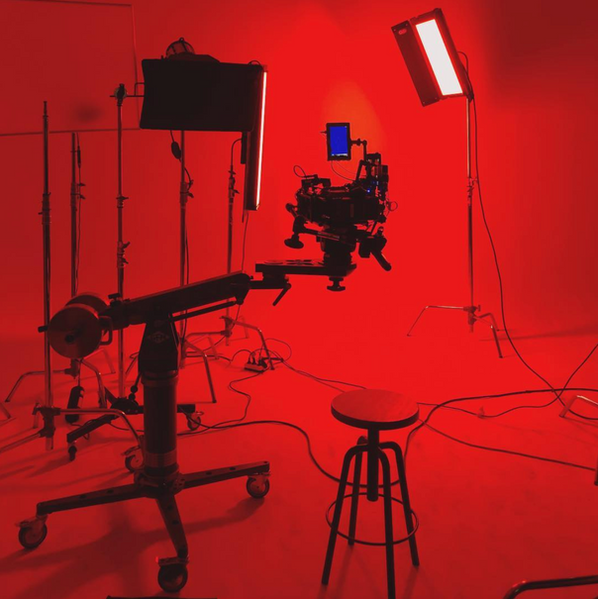

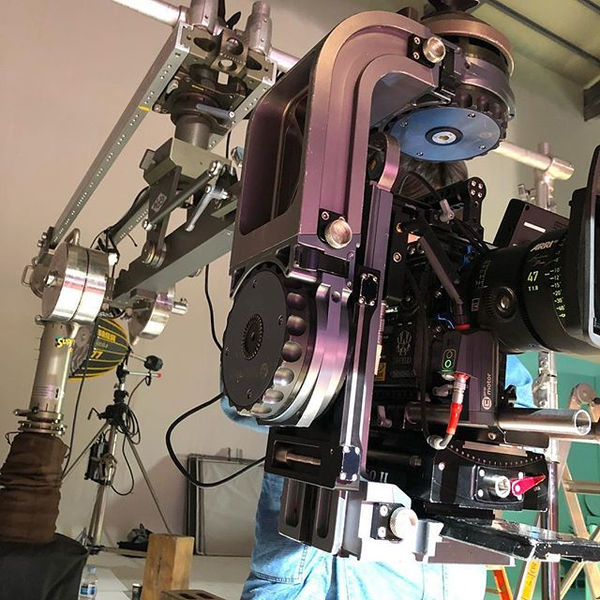

The GF-Baby Jib in action on sets around the world. Swipe to see more.
