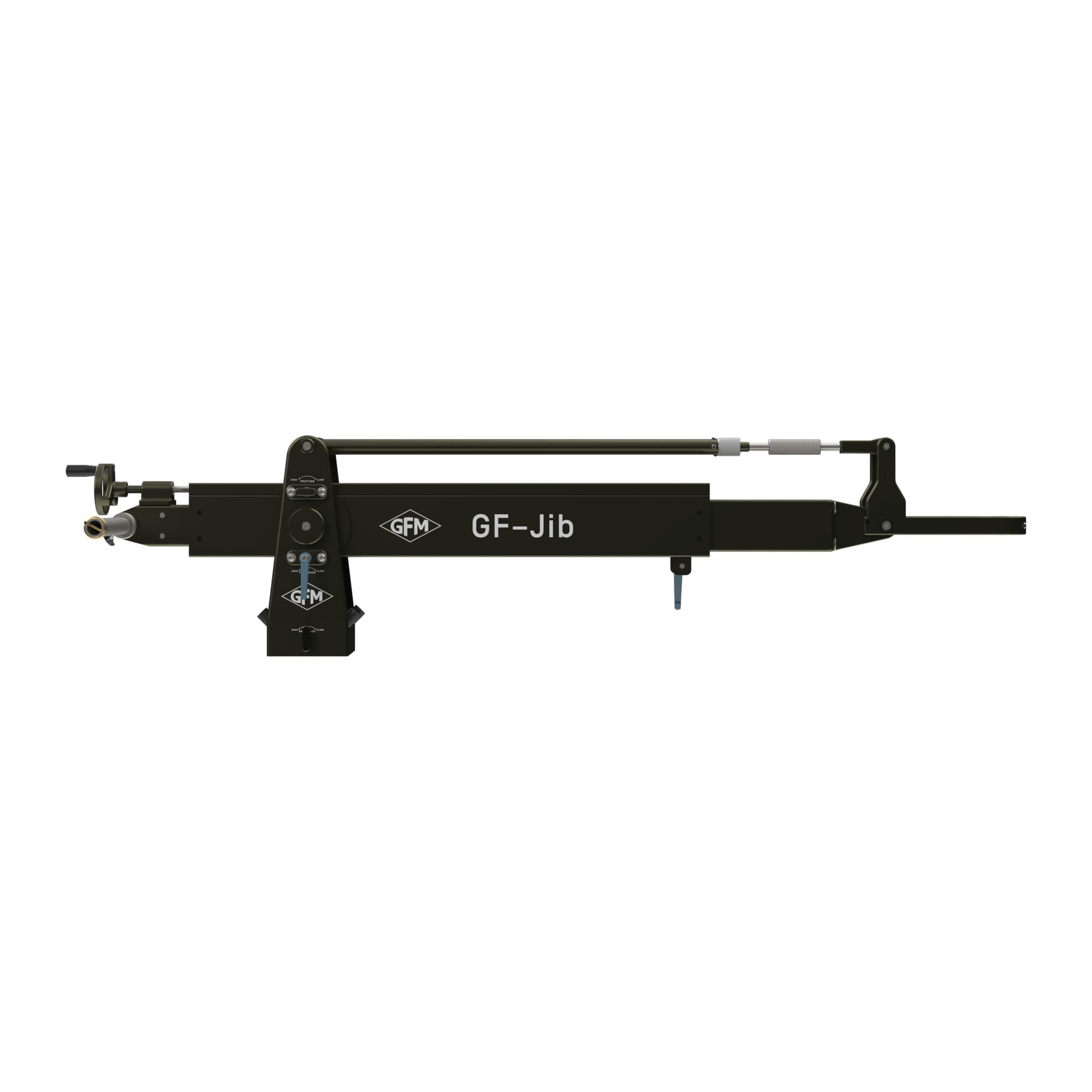

GF-Jib
Technical Specifications
The GF-Jib was designed to function as a stable, solid Jib Arm, meeting the specific needs of heavier camera packages up to 60 kg (132 lbs). Its manual length adjustment allows for quick and easy setup at the required length.
The counterweight arm is telescopic and can be adjusted to the required length with ease — with just a few turns of the crank to ensure perfect balance at any angle.
FRONT (RETRACTED)
133 cm (4'4")
FRONT (EXTENDED)
188 cm (6'1")
REAR (RETRACTED)
REAR (EXTENDED)
48 cm (1'7")
103 cm (3'5")
LIFT RANGE (RETRACTED)
LIFT RANGE (EXTENDED)
JIB WEIGHT
42 kg (92 lbs)
151 cm (4'11")
227 cm (7'5")
TILT ANGLE
43 degrees
MAX PAYLOAD
(RETRACTED)
60 kg (132 lbs)
MAX PAYLOAD
(EXTENDED)
40 kg (88 lbs)
MAX COUNTERWEIGHT
120 kg – 10 × 12 kg
(265 lbs – 10 × 26.5 lbs)
CAMERA HEAD
Mitchell 3-Way with integrated Double Swivel
JIB MOUNT
Euro Adapter (Mitchell available)
