FEATURES
GF-Mini Jib
Technical Specifications

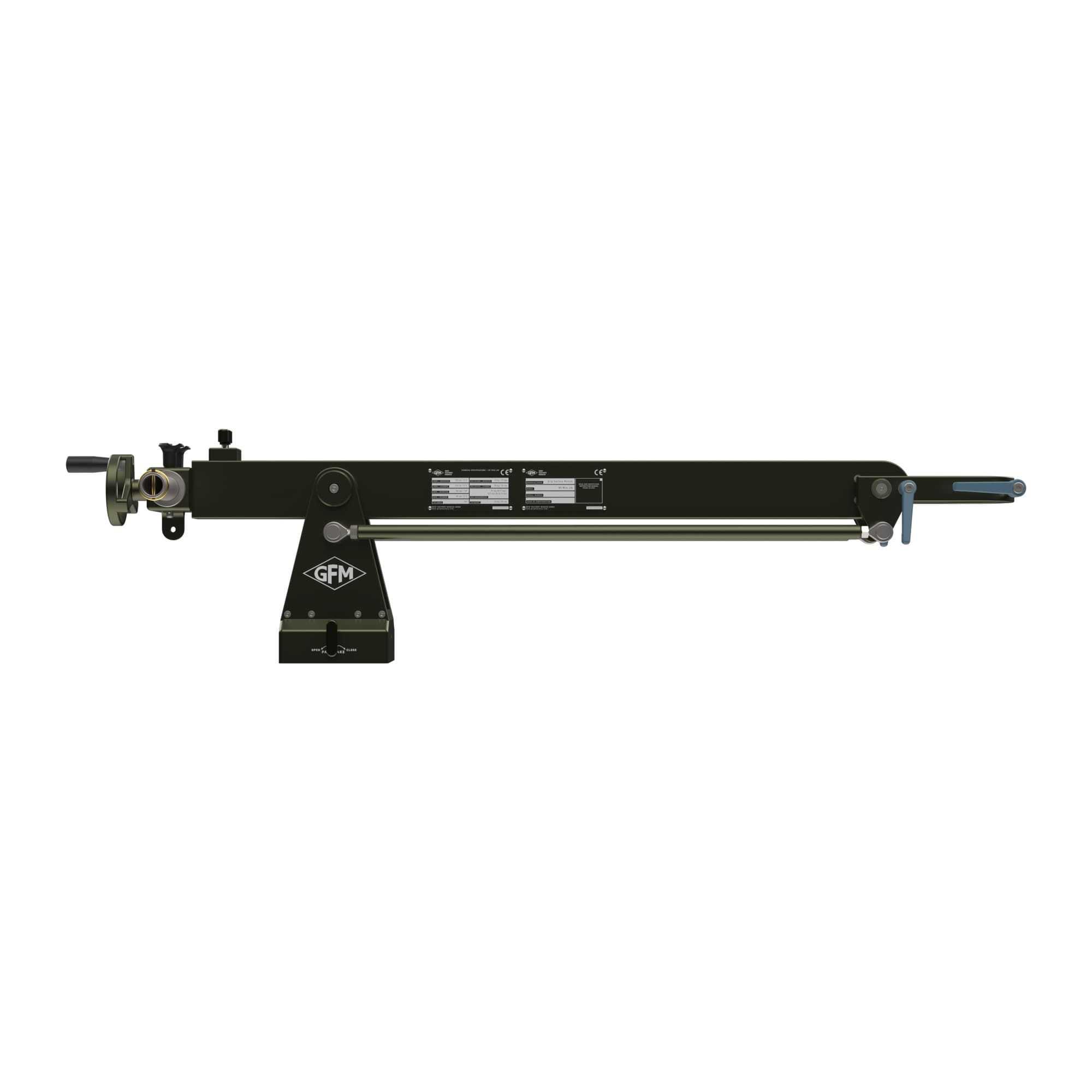

The GF-Mini Jib is a lightweight, stable, compact jib for camera packages weighing up to 30 kg (66 lbs). It provides smooth, vibration-free movements in tight, confined spaces whether working off a dolly or tripod. The complete GF-Mini Jib set fits into one flight case.
REACH
82 cm (2'10")
JIB WEIGHT
17 kg (37 lbs)
CAMERA HEAD
Mitchell 3-Way with integrated Double Swivel
REAR (RETRACTED)
REAR (EXTENDED)
LIFT RANGE
31 cm (1')
100 cm (3'3")
120 cm (3'11")
TILT ANGLE
53 degrees
MAX PAYLOAD
30 kg (66 lbs)
MAX COUNTERWEIGHT
48 kg – 4 × 12 kg
(105 lbs – 4 × 26 lbs)
JIB MOUNT
Euro Adapter (Mitchell available)

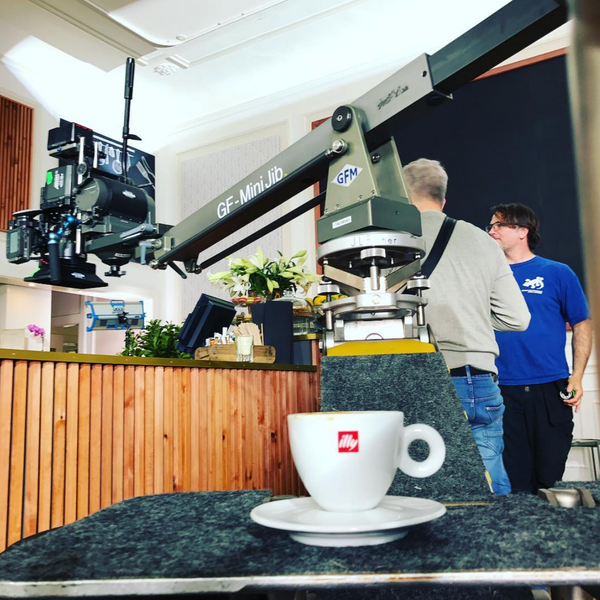

The GF-Mini Jib in action on sets around the world. Swipe to see more.
