GF-Mod Jib
Technical Specifications
REACH (MIN)
REACH (MAX)*
PAYLOAD (FULL LENGTH)**
80 cm (2'7")
400 cm (13'1")
35 kg (77 lbs)
JIB WEIGHT
75 kg (165 lbs)
LIFT RANGE (MIN)
LIFT RANGE (MAX)
TILT ANGLE
52 cm (1'8")
610 cm (20')
54 degrees
CAMERA HEAD
Mitchell 3-Way with integrated Double Swivel
JIB MOUNT
MAX COUNTERWEIGHT
160 kg – 8x 20 kg
(350 lbs – 8x 44 lbs)
Euro Adapter
(Mitchell available)
* 480 cm (15'9") with 80 cm Add-on Extension at 20 kg Payload
** up to 60 kg (132 lbs) in Shorter Setups
OPERATION
How to set up the GF-Mod Jib
Thanks to its unique modular concept and different extensions, the GF-Mod Jib can be set up in a large variety of ways, fully utilising its potential, both in open and in tight spaces and perfectly fitting the circumstances on set — making it incredibly easy for grips to get it up and ready within minutes.
The three different modules (extensions) can be connected in any order through our backlash-free dovetail system.
150 CM EXTENSION
120 CM EXTENSION
50 CM EXTENSION
80 CM ADD-ON EXTENSION

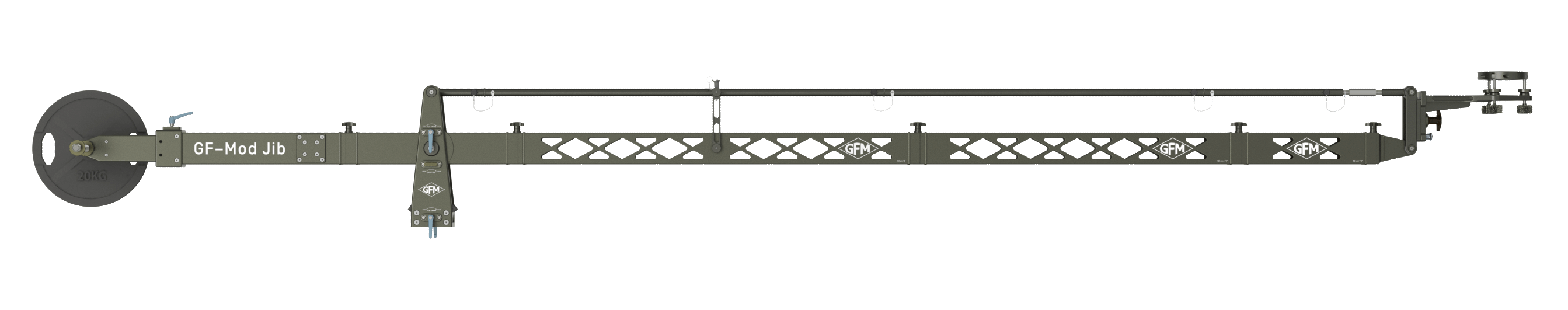

GF-Mod Jib
Setup Examples
150 cm
EXTENSION
120 cm
EXTENSION
80 cm
50 cm
ADD-ON
EXTENSION
35 cm
NOSE
480 cm
REACH
150 cm
EXTENSION
120 cm
EXTENSION
50 cm
35 cm
EXTENSION
NOSE
400 cm
REACH
150 cm
EXTENSION
120 cm
EXTENSION
35 cm
NOSE
350 cm
REACH
150 cm
EXTENSION
50 cm
35 cm
EXTENSION
NOSE
280 cm
REACH
150 cm
EXTENSION
35 cm
NOSE
230 cm
REACH
120 cm
EXTENSION
50 cm
35 cm
EXTENSION
NOSE
250 cm
REACH
120 cm
EXTENSION
35 cm
NOSE
200 cm
REACH
50 cm
35 cm
EXTENSION
NOSE
130 cm
REACH
35 cm
NOSE
80 cm
REACH
IN-DEPTH LOOK
GF-Mod Jib
Key Features
Modular Design.
Maximum Flexibility.
A setup just the way you need it.
The 150 cm, 120 cm and 50 cm extension modules are connected through our innovative play-free dove tail system – enabling operators to work with a minimum reach of 80 cm up to a maximum reach of 400 cm in a regular setup.
Add-on for more reach.
By adding the 80 cm add-on extension, the GF-Mod Jib's maximum reach may be extended up to 480 cm.
Mitchell 3-Way with Integrated Double Swivel
Counterweight Arm with Crank Mechanism

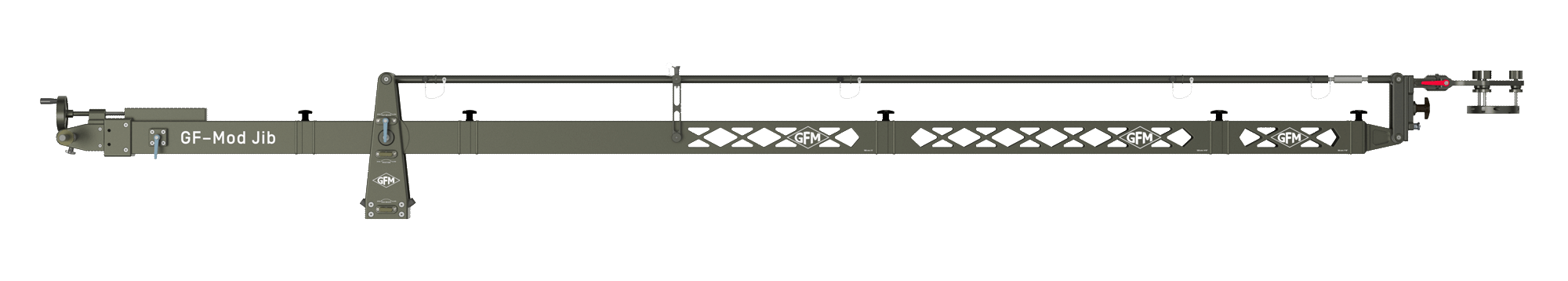

The GF-Mod Jib allows for overslung as well as underslung operation of the jib arm with an integrated Mitchell 3-Way Double Swivel.

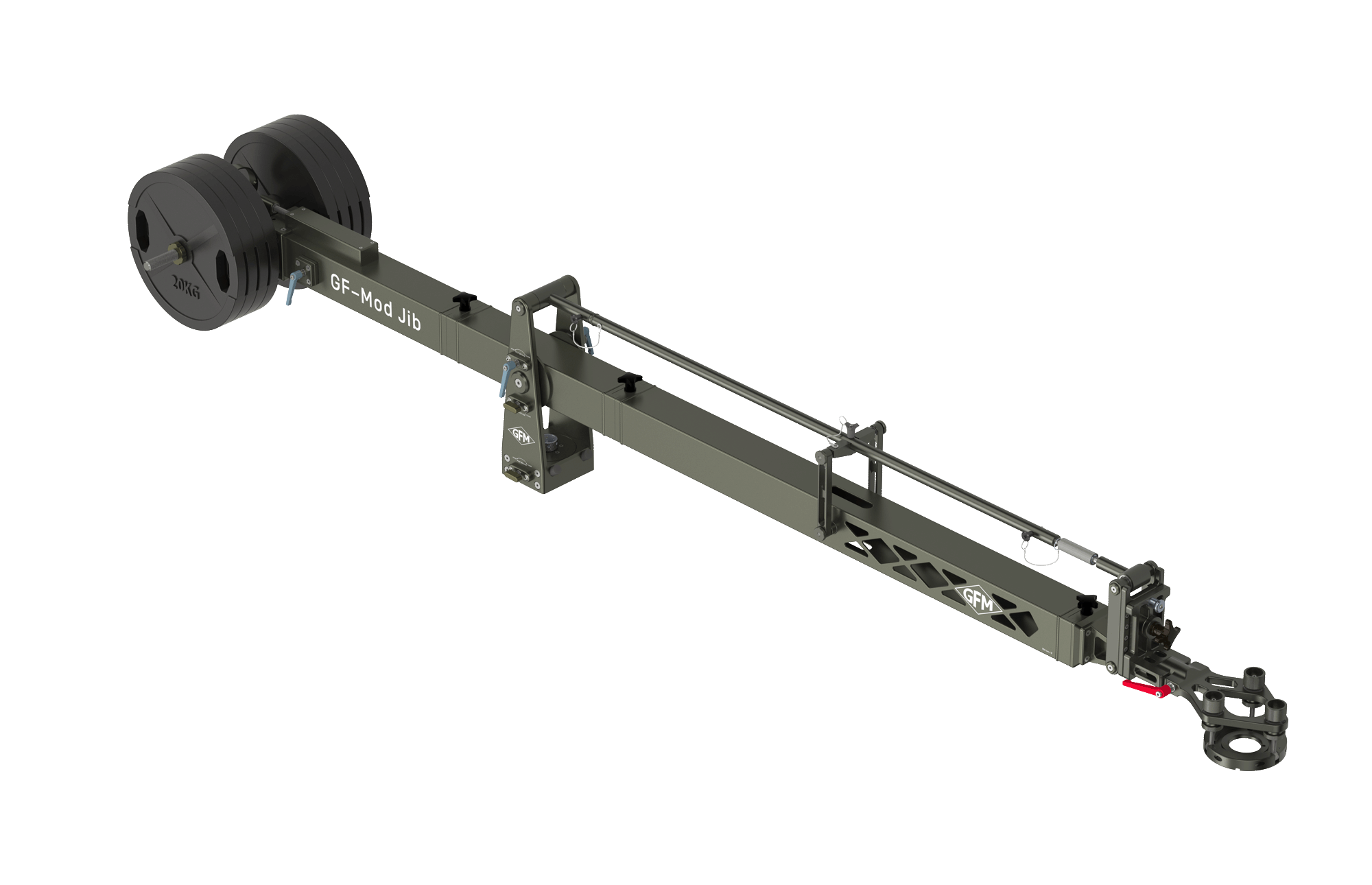

The GF-Mod Jib features a crankable telescopic counterweight arm for comfortable adjustments of the arm.
Ultra Lightweight Construction
Backlash-free Dovetail System
The GF-Mod Jib's design philosophy puts an emphasis on its extremely lightweight construction while also providing maximum stability.
The different modules of the GF-Mod Jib connect through our innovative backlash-free dove tail system, making the jib arm extremely sturdy.
