FEATURES
GF-Tele Jib
Technical Specifications

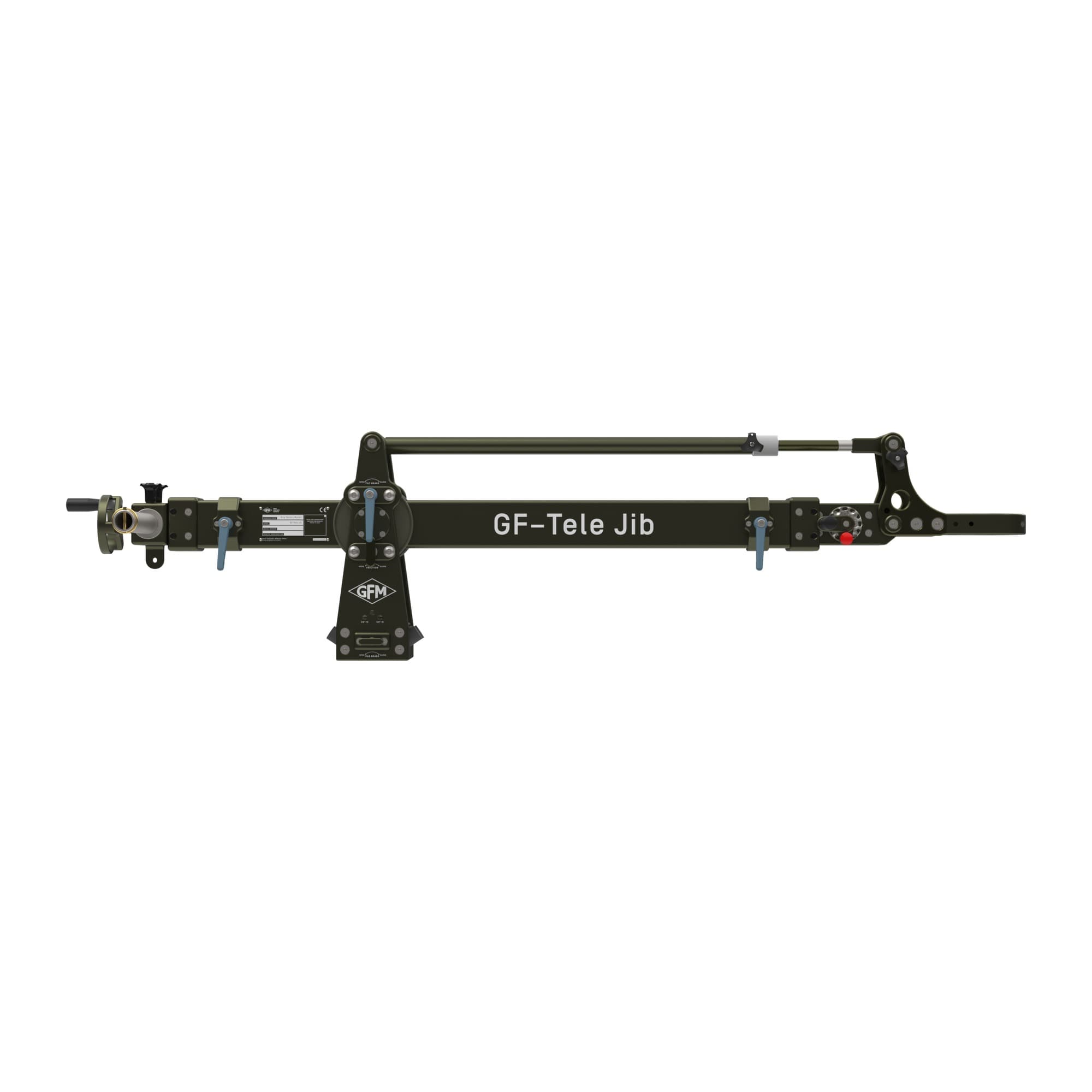

The GF-Tele Jib is a lightweight, stable and variable length Jib Arm. The advantage is a very fast resetting of the arm length by telescoping in or out and then fixing the arm at the required working length. It carries camera packages of up to 45 kg (99 lbs) and offers smooth, vibration-free movements, and adds flexibility when working on tight sets.
FRONT (RETRACTED)
103 cm (3'5")
FRONT (EXTENDED)
156 cm (5'2")
REAR (RETRACTED)
REAR (EXTENDED)
37 cm (1'3")
54 cm (1'9")
LIFT RANGE (RETRACTED)
LIFT RANGE (EXTENDED)
JIB WEIGHT
25 kg (55 lbs)
143 cm (4'8")
230 cm (7'7")
TILT ANGLE
56 degrees
MAX PAYLOAD
(RETRACTED)
45 kg (99 lbs)
MAX PAYLOAD
(EXTENDED)
30 kg (66 lbs)
MAX COUNTERWEIGHT
96 kg – 8 × 12 kg
(212 lbs – 8 × 26.5 lbs)
CAMERA HEAD
Mitchell 3-Way with integrated Double Swivel
JIB MOUNT
Euro Adapter (Mitchell available)
