With the help of Modulus-X™'s elegant components, you can configure highly customisable, robust and relocatable Truss Structures with the best load ratings and weight-to-strength ratio in the industry.
In addition to the Mx|66| and Mx|99| series, we also offer a constantly growing range of GFM-made accessories to match the on-set needs of grips. The collaboration between GFM and Modulus-X™ is bound to bring innovation and efficiency to the world of truss systems and grip equipment.
FEATURES
Modulus-X™
Key Features
.png)
Mx|66|
The fastest and most stable 6" truss system.
→
Outside dimensions: 15.2 × 15.2 cm / 6" × 6"
6061 extruded aluminum with 0.6 cm / ¼" corner radius
→
Connection points every 3"
→
Off-axis bolt pattern supports connections every 45 degrees
→
Component sizes available as 15.2 cm / 6" cubes or one foot increments up to 10 feet in length
AVAILABLE LENGTHS
* CUBE SIZE
Mx|99|
The preferred 9" truss choice for the most stable temporary structures.
→
Outside dimensions: 22.8 × 22.8 cm / 9" × 9"
6061 extruded aluminum with 0.6 cm / ¼" corner radius
→
Connection points every 3"
→
Off-axis bolt pattern supports connections every 22.5 degrees
→
Component sizes available as 15.2 cm / 6" and 23 cm / 9" cubes, 46 cm / 18" or one foot increments up to 10 feet in length
AVAILABLE LENGTHS
* CUBE SIZE
Modulus-X™ Packages
20' × 40'
Telehandler Frame Package
Can also easily be configured into 20’ x 30’ or 30' x 30' frame
One tool is all you need to set up
Can be built quicker, safer and more efficiently than any other method in use
Fewer pieces are required to build, resulting in a smaller truck footprint
The package includes:
10' x 4
10' x 12
6' x 3
9' x 4
Flange Bolt Assembly
Telehandler Steel Plate Adapters
Key Grip
Starter Package
The ultimate key grip starter truck package composed of a variety of Mx|66| pieces needed for various applications, including:

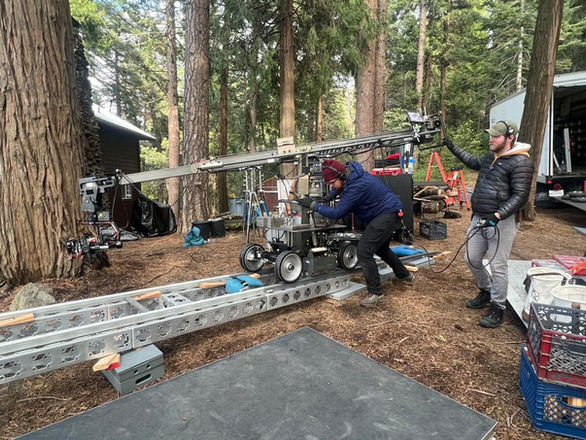

Support for dolly track on uneven ground
Camera rigs and Vehicle camera mounts
The package includes:
10' x 2
2' x 4
8' x 2
1' x 4
6' x 2
4' x 4
Flange Bolt Assembly
